Manor Wrought Iron Style Metal Garden Fence Panel | 3ft High

Manor Metal Fencing is suitable for various home and garden settings when a clearly defined boundary will benefit the property owner. Each metal fence panel is constructed from high-quality solid steel components, making it superior in strength to timber alternatives. It features 25mm x 10mm flat bar steel horizontal rails and 12mm round infill bars. For a subtle yet practical design detail, a single row of ball top finials is included along the top of the fence.

Manor Ball Top Metal Fencing Specification

• The timeless design creates a universal appeal.

• Solid steel construction.

• Metal fence panels are suitable for numerous applications around the home and garden.

• ​Manor metal fencing feature 25mm x 10mm metal frames and 12mm solid infill bars.

• A fitting pack contains the surface mounted fixing brackets and bolts (the screws to mount the brackets are not provided).

• Low maintenance zinc plated (electro galvanised) and black powder-coated paint finish.

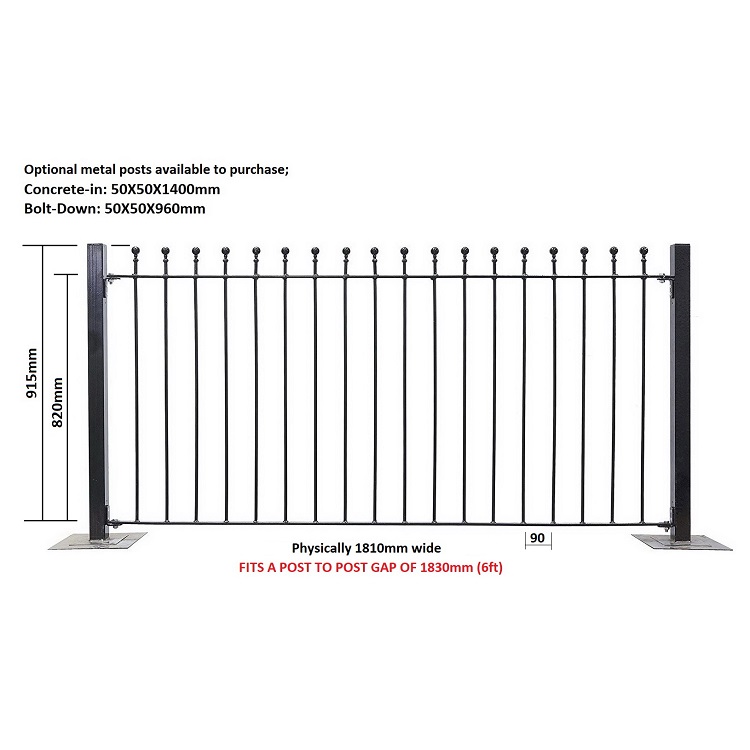

Fits Opening

• 1830mm (6ft)

Physical Height

• 914mm (36")

Ordering Sizes

• Width: The “fits opening” measurement relates to the gap size needed between existing posts or pillars to install each fence panel. This dimension already includes the space necessary for the mounting brackets. No other calculations are required.

• Height: The “physical height” is measured from the bottom horizontal rail to the top of the finials. We have not included any allowance for ground clearance within this measurement.

Metal Posts: If no existing support structure is present or when multiple fence panels are needed, you must install metal posts to connect each section. As a result, you must account for the additional space required for these items.

Ordering Examples

• 1 x fence and 2 x 50mm metal posts will need an overall length of 1930mm.

• 2 x fence panels and 3 x 50mm metal posts will need an overall length of 3810mm.

• 3 x fence panels and 4 x 50mm metal posts will need an overall length of 5690mm.

Do you Need to Order Metal Fence Posts?

When posts are required, you can choose from the following options:

• Flat Top 50mm (2”) Square Metal Post (in ground) – BP50x1400

• Ball Top 50mm (2”) Square Metal Post (in ground) – BP50x1400B

• Flat Top 50mm (2”) Square Metal Post (in-ground) – BP50x1600

• Ball Top 50mm (2”) Square Metal Post (in-ground) – BP50x1600B

• Flat Top 50mm (2”) Square Metal Post (bolt down) – BP50x960

• Ball Top 50mm (2”) Square Metal Post (bolt down) – BP50x960B

Looking for Help and Advice Before Ordering?

We have provided you with many useful information pages to help with your order. Our most popular pages include the Buying Guide, Ordering Guide, FAQ and Installation Guide. Alternatively, please get in touch if you have not found the information you need.

You may also be interested in the following blog posts & case studies

• Why Choose Metal Fencing?

• Planning Permission & Building Regulations Approval for Gates, Fencing & Railings

• What Type of Garden Fencing Should I Buy?

• Residential Gate and Fence Security

​

Useful Information About Manor 3ft High Wrought Iron Style Metal Fence Panels

Fittings: We include a fitting pack with each panel. It will contain the 4 x mounting brackets and bolts. We do not provide the screws for attaching the brackets to posts or brickwork.

Posts: If you need to use metal posts, these must be the correct type for your required installation. You must set "In-Ground" posts to a sufficient depth and hold them in place with concrete. "Bolt-Down" posts are surface mounted and will need to be secured using appropriate bolts.

Width: The "fits opening" dimension is the gap size required between posts or brick walls. It does not correspond to the physical width of the framework.

Painting: Manor fencing has a low maintenance zinc plated (electro galvanised) and black powder-coated paint finish and does not need any further treatment before installation.
