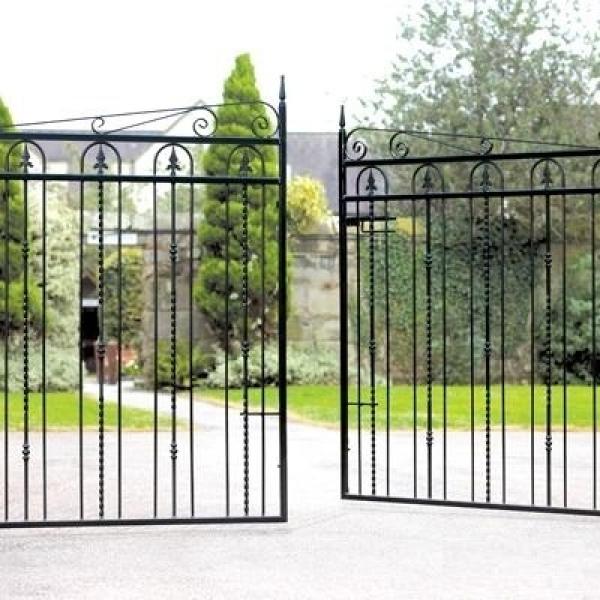

Windsor Metal Driveway Gates

The magnificent Windsor Metal Driveway Gates are available to buy online in various sizes to suit many typical domestic applications and are fantastic value for money. Handmade in the UK using high-grade steel components, these stunning 4ft high double gates feature a box section framework to create rigidity and strength. The decorative wrought iron style design elements such as spiral infill bars, fleur-de-lys finials and large scrolls make a visually pleasing overall appearance that will impress even the most demanding of property owners' tastes.

Windsor Wrought Iron Style Double Metal Driveway Gates Specification

• Wrought iron style gates are built to high standards to ensure strength, rigidity and performance.

• Fitted with a variety of decorative scrolls for an enhanced appearance.

• Constructed with 25mm x 25mm mitred box section metal frames and 12mm infill bars.

• Double gates include adjustable hinges, sliding latch and drop bolt.

• Supplied in a black primer undercoat. You will need to paint the gates before installation.

Height (once installed)

• 1220mm (4ft) + top scrolls

Ordering Sizes

• Width (Fits Opening): Please choose the width you need from the drop-down menu. When selecting the size, you must understand these dimensions relate to the size of the opening the gates will fit. We have already included the space necessary for the hinge and latch within the measurement; therefore, you must not make any additional calculations. To avoid any possibility for confusion, this means that if your brickwork opening is 10ft 6", you should order the gates to "fit opening" 10ft 6".

• Height (once installed): This is from ground level to the top of the horizontal rail. We have incorporated an allowance of 50mm (2") for ground clearance within this measurement. The scrollwork on top of the frame is not included.

Are Metal Posts Required to Provide Support?

If you plan on using metal posts, you will need to ensure additional space is available for these items.

Example: Windsor double entrance gates to are made to "fit an opening" of 10ft 6" combined with 2 x 4" posts will take up a total overall space of 11ft 2".

Looking for Technical Advice Before Ordering Online?

To help you place an order online, we have compiled lots of information pages on our website. You will find answers to many of our most common questions if you read the Buying Guide, Ordering Guide, FAQ and Installation Guide. If you do not find the information you need, please get in touch, and we will be delighted to help.

Useful Information About the Windsor Driveway Gates

Fittings: Double gates include a comprehensive fitting pack which consists of surface mounted adjustable hinges, a sliding latch, and an in-ground drop bolt. We do not provide the screws required to attach the hinge brackets to brickwork or existing posts.

Posts: You will need to install metal posts for installations without existing brickwork. When choosing these items, it is essential they are the correct size and type and will need to be set into the ground with concrete.

Installation: You should only attach the hinge brackets to existing masonry surfaces, provided it can adequately support the additional weight. For more details, please read the installation guide.

Width: This is the opening size required between brickwork or posts. It does not refer to the physical width of the gates. If you are still unsure what this means, please click here.

Painting: 4ft high Windsor wrought iron style driveway gates are primed black with an undercoat. You must paint all surfaces before installation to prevent rust and corrosion. Alternatively, we offer low maintenance zinc plated (electro galvanised) and black powder-coated paint finish for an additional charge. To find out more details about this, please get in touch with us before ordering, and we will advise you of the additional costs.
