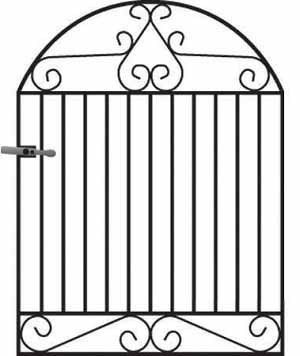

Marlborough Arched Metal Garden Gate - 4ft High

The Marlborough 4ft High Arched Metal Garden Gate is an excellent choice for securing any pedestrian entry point on your property. Manufactured in the UK, it features traditional wrought iron-style design elements, offers great value for money, and is available in a range of popular sizes to fit most standard opening widths. The gate boasts a robust steel construction, including a 20mm x 8mm welded framework, 10mm metal infill bars, and 10mm x 3mm decorative scrolls. Suitable for easy DIY installation, it includes the hinges and latch allowing for fitment on a variety of surfaces, including masonry, timber, and metal posts.

Key Features of this Bow Top Gate

• Attractive arch top design.

• Suitable for variety of residential applications around the home and garden.

• 20mm x 8mm metal frames and 10mm infill bars.

• 10mm x 3mm decorative scrollwork.

• Handmade in the UK to a high standard.

• Includes surface-mounted adjustable hinges and a universal latch mechanism.

• Suitable for left or right-hand hanging.

• Available to order in a black undercoat (primed) paint, ready for finishing in your choice of colour before installation, or in a low-maintenance zinc-plated (electro-galvanized) and black powder-coated finish.

Height (once installed)

• 1220mm (4ft)

Ordering Sizes

• Width (Fits Opening): The gap size needed between your brickwork and posts is the "fits opening" dimension. The space required for the hinges and latch is already factored into this measurement. You don't need to complete additional calculations to account for these parts.

• Height: This is the distance measured from the ground to the top of the arch. The dimension includes a 50mm (2") space for ground clearance.

Example Ordering Size

You must select the option from the drop-down menu that reads "fits opening 1067mm" if the spacing between the walls is 1067mm.

Do You Require Metal Posts?

If there is no existing support structure, you will need to install metal posts. Please note that these components will require extra space, so we recommend checking that this is available before placing your order.

Example: A total width of 1167mm is required when ordering a gate to "fit an opening of 1067mm" and 2 x 50mm posts.

Do You Need More Information & Guidance?

We understand that choosing the appropriate size can be confusing so please refer to our easy-to-understand measuring guide if you need additinal help. Alternatively, we have additional support available within the buying guide, installation instructions, and FAQ sections. Alternatively, if you cannot find the information you need, please use the enquiry form to get in touch with us.

You can alos find lots of informative articles on our website. Here are some of the most popular support pages:

• Simple Installation Issues and Solutions

• Ordering Guide

• What to Contemplate When Buying a Garden Gate

• A Property Owners Guide to Garden Gates

• How to Look After Your Metal Gates?

• Made to Measure Sizes

• Practical Tips & General Advice

Important Information about the Wrought Iron Style Marlborough Arched Metal Garden Gate

Fittings: We provide two surface-mounted adjustable hinges, a universal latch mechanism, and a receiver plate for mounting on posts or walls. To attach these components to your chosen surface, you must buy the proper screws.

Metal Posts: When purchasing metal posts, make sure you select the correct type for your installation. For in-ground posts, you should ensure they are positioned at the correct depth and set in place with concrete.

Installation: Before you start the installation, be sure the structure to which you are attaching the fittings can give the necessary support. Follow the instructions supplied with the product when fitting the gate, and only use appropriate screws to fasten the hinges and latch .

Width: The "fits opening" measurements refer to the dimensions of the gap / opening where the gate will be installed. These measurements include the space required for the hinges and latch, and do not just refer to the physical width of the gate. Read our guide on choosing the proper size if you need clarification.

Painting: The primed black (undercoat) gate option must be painted before installation to prevent rust and corrosion of the steel. Alternatively, for an additional charge, you can upgrade to an electro-galvanized (zinc-plated) and black powder-coated paint finish.
